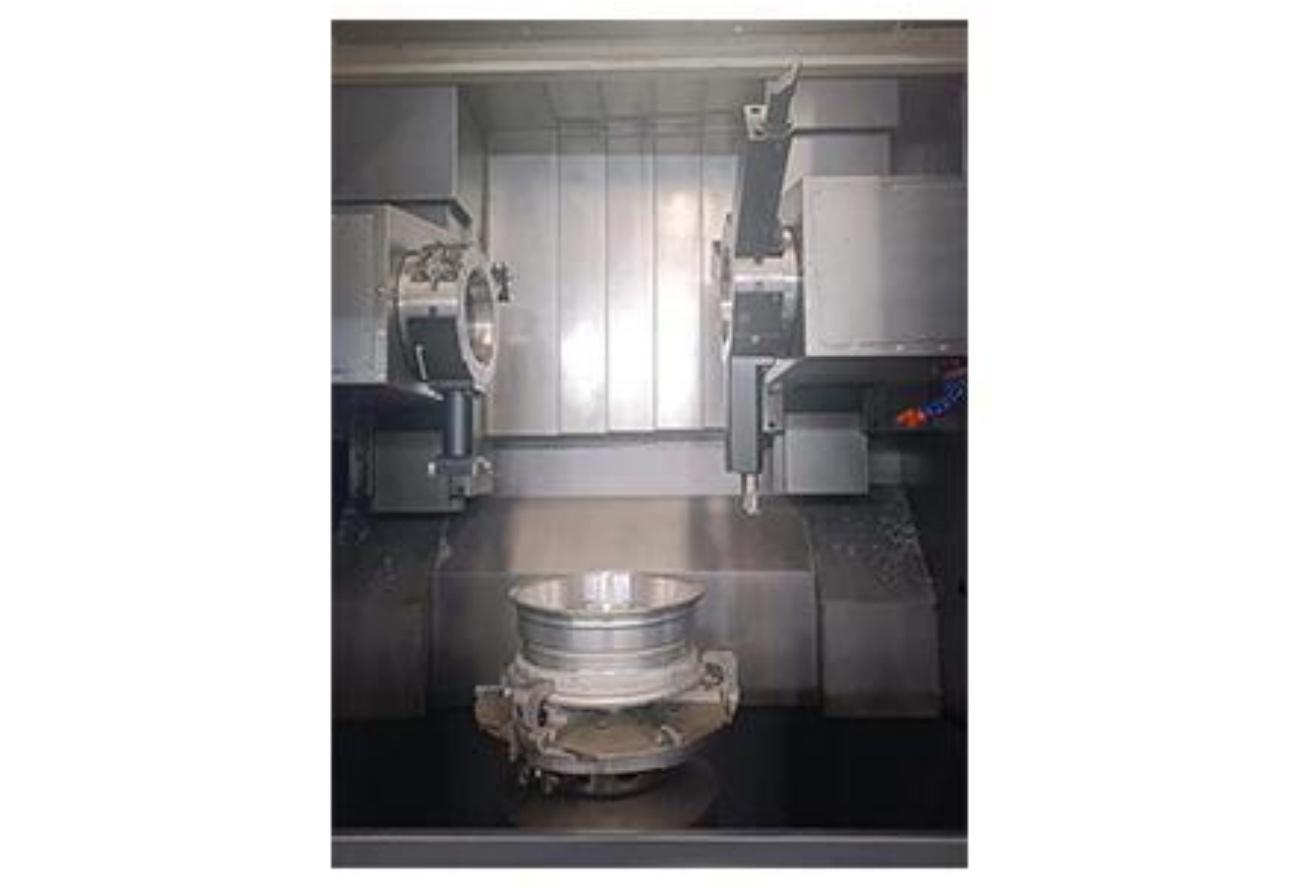

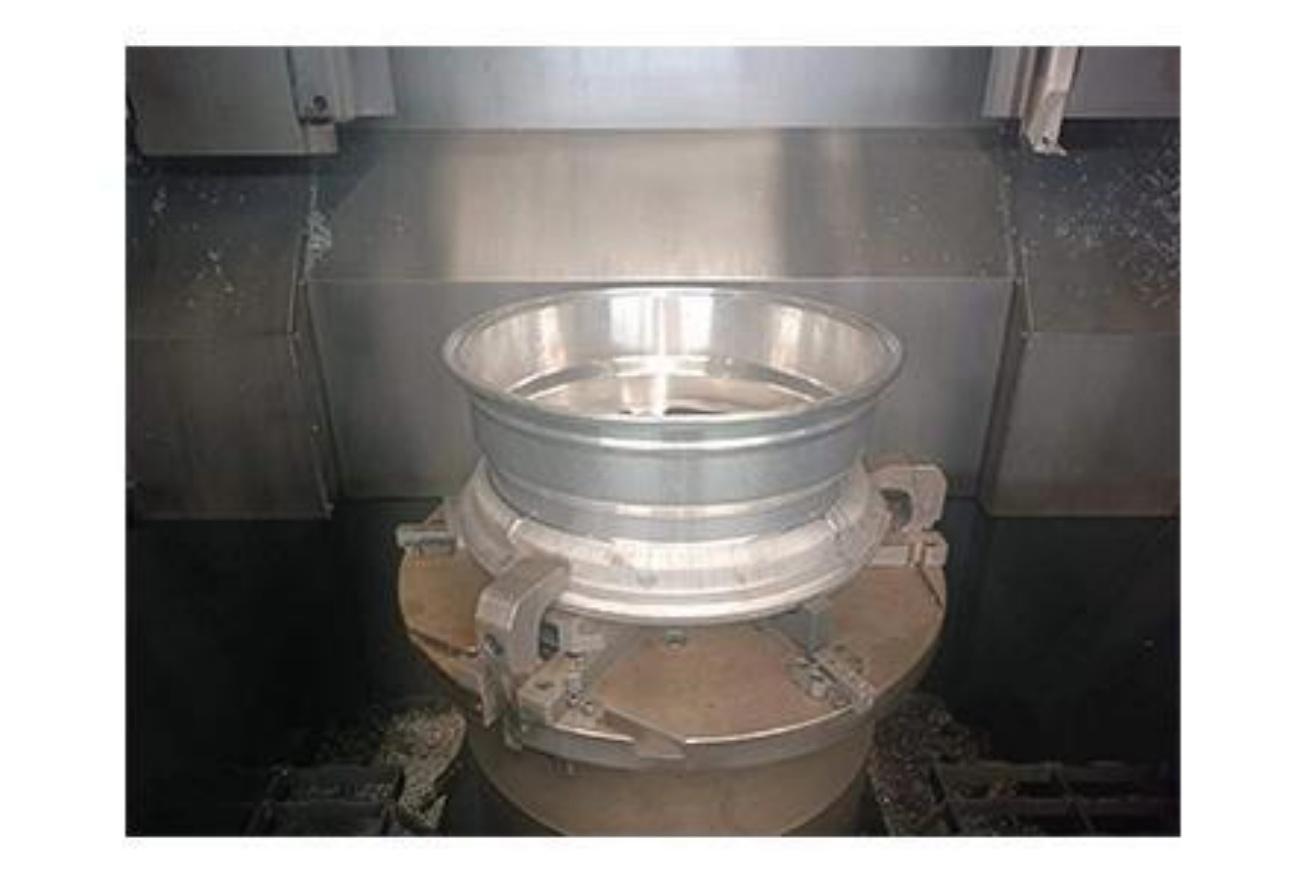

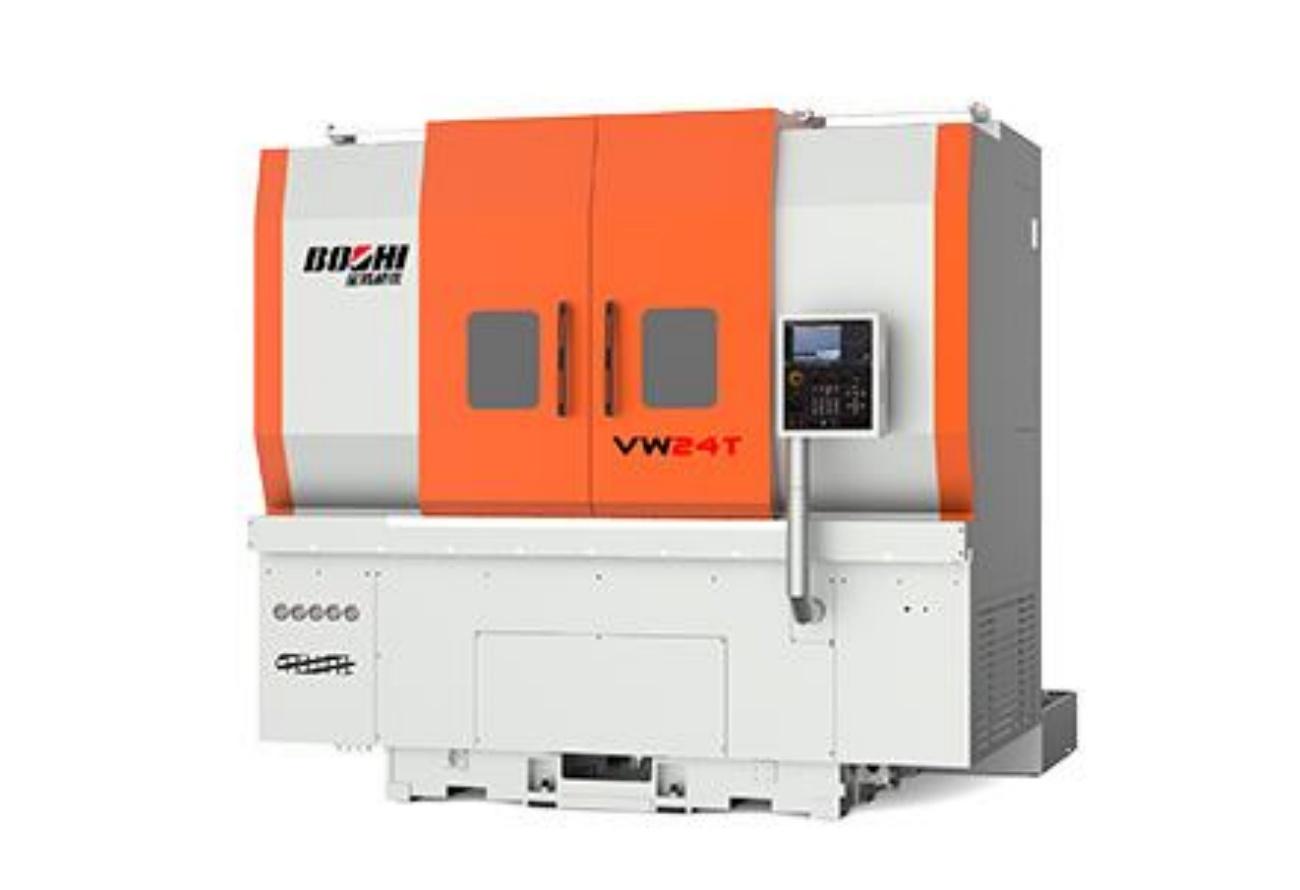

VW24T is a CNC vertical twin-tool holder lathe with wide rectangular hardened guideway, which is a highly efficient machine tool developed for automotive wheel hub machining. The machine has single spindle and double tool holders, controlled by dual-channel CNC system, two six-station servo tool holders can be independently set up and feed each other, and the two tool holders can simultaneously process inner and outer rings of wheel hubs, which is flexible and versatile; one set of control controls two sets of feeds, which has high machining efficiency and covers a small area.
|
Item |
unit |
Specifications |
|
|
Capacity
|
Max. swing diameter |
mm |
Φ870 |
|
Max. swing diameter over saddle |
mm |
Φ700 |
|
|
Max. workpiece length |
mm |
450 |
|
|
Max. turning wheel diameter |
Inch |
26″（610mm） |
|
|
Max. turning wheel hub height |
Inch |
14″（356mm） |
|
|
Spindle
|
Hydraulic chuck diameter |
Inch |
Solid 21 "(optional) |
|
Spindle nose |
|
A2-11 |
|
|
Spindle bearing diameter |
mm |
180/160 (front/back) |
|
|
Spindle speed |
rpm |
22-2200 |
|
|
Spindle power |
Kw |
45/55 |
|
|
Apron
|
Travel (X1X2/Z1Z2) |
mm |
520/550 |
|
Rapid feed speed (X1X2/Z1Z2) |
m/min |
16/16 |
|
|
Servo motor (X1X2/Z1Z2) |
|
α30i/α30i |
|
|
Servo motor torque (X1X2/Z1Z2) |
Nm |
30/30 |
|
|
Servo motor power (X1X2/Z1Z2) |
kW |
7.0/7.0 |
|
|
Ball screw diameter lead (X1X2/Z1Z2) |
mm |
Φ50x8/Φ50x8 |
|
|
Turret
|
Number of stations |
|
6 workstations |
|
Tool size (turning/boring) |
mm |
32X32/Φ32～Φ50 |
|
|
Other
|
source |
kVA |
85 |
|
Volume (length x width x height) without chip conveyor |
cm |
3440X4700X3400 |
|
|
Net weight/total weight of the host |
Kg |
Approximately 16000/17000 |
