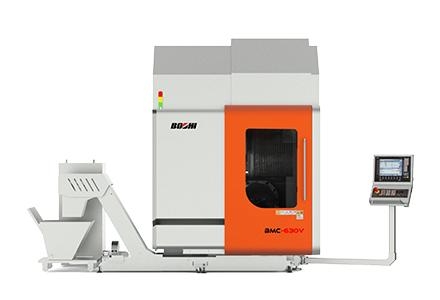

BMC630V 5-AXIS MILLING CENTER watch video
Product Description:

BMC-630V 5-axis vertical machining center adopts stable C-type structure, high rigid base to support swing B and C axis rotation, X / Y axis uses cross slide design, standard high-speed electric spindle, direct drive CNC rotating worktable, can be used for complex curved surface, polyhedron parts and other precision milling compound processing, widely used in new energy vehicle motor, gearbox, engine, mold, robot , medical devices and other manufacturing industries.


Technical Specifications:

item

BMC-630V

Work table

Diameter work table

ф630mm

Max.horizontal loading

500kg

Max. Vertical loading

300kg

Angle of B-axis

-35°~+110°

T-slot

8×14H8

Travel

X-axis

600mm

Y-axis

450mm

Z-axis

400mm

Distance between spindle nose to worktable

150-550mm

Spindle

Max. spindle speed

12000rpm

Rated speed

2000rpm

Power of spindle motor

11/15kw

Spindle torque

70/95NM

Taper of spindle

BT40

Feed

Guide way

linear guide way

Power of feed motor for X/Y/Z axis

2.2/2.2/2.2kw

Rapid speed of X/Y/Z axis

36/36/36m/min

Max swing speed of B/C axis

40/50rpm

Feed speed for X/Y/Z axis

20000mm/min

Feed speed for B/C axis

50rpm

ATC

Tool capacity

24(disk type)

Tool change type

ATC arm

Tool selection

two-way nearby selection

Max tool loading

8kg

Max tool diameter(adjacent/inadjacent)

80/150mm

Max tool length

300mm

tool shank

BT40

Tool change time(T-T)

2.5s

Others

CNC controller

HNC 848di

Air source

0.6-0.8Mpa

 Power supply

46kw

 Weight

6000kg

 Dimension

2400×3500×2850mm
