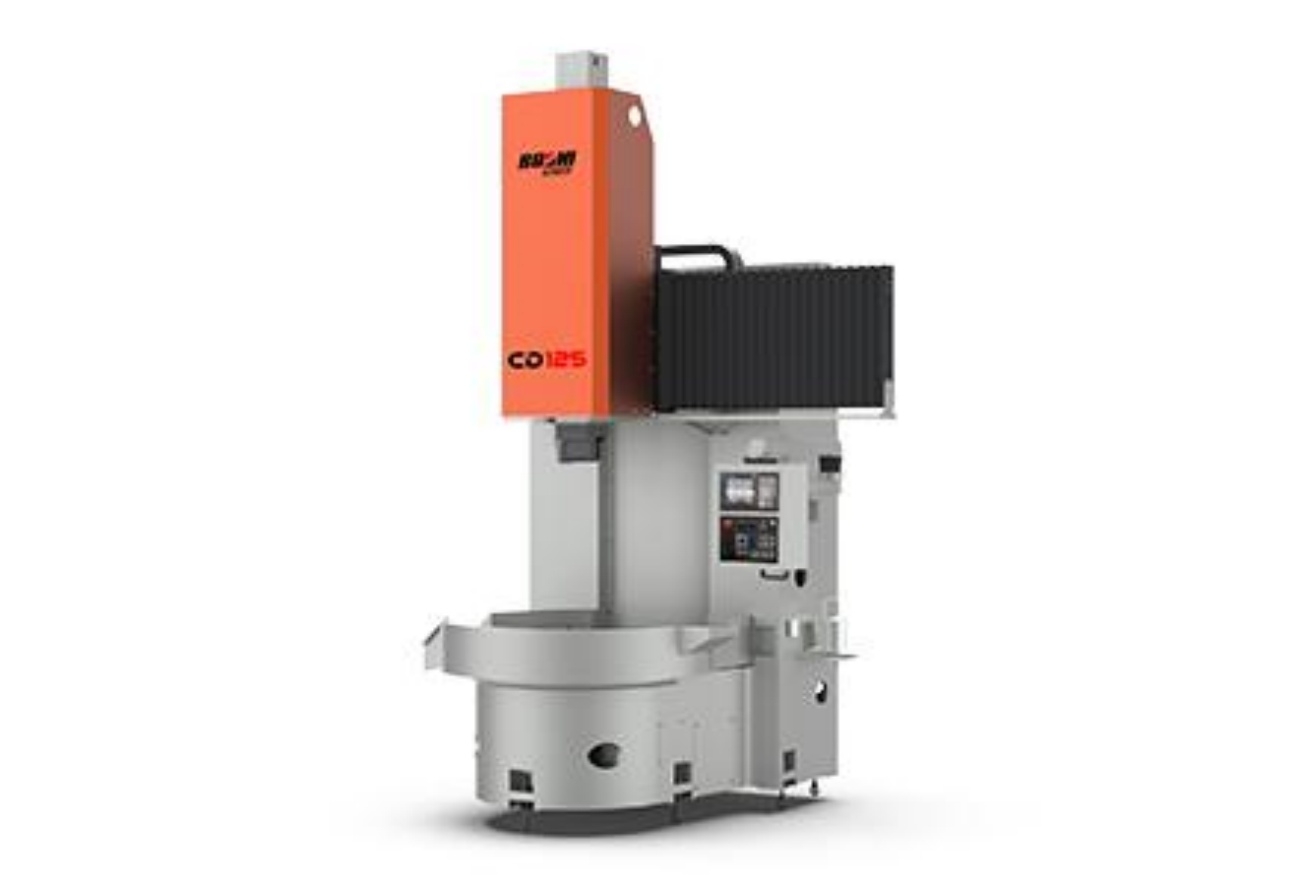

CD125 is a CNC vertical lathe make the main structure as the base, adopt the single column structure It adopts a work table, fixed beam, square sliding pillow, and single tool holder structure, equipped with simple protection and without cooling device. It is a high rigidity and cost-effective economic CNC vertical lathe that can perform machining of various inner and outer cylindrical surfaces, conical surfaces, curved surfaces, etc. It is particularly suitable for machining motor shells, large and medium-sized disk sleeves, covers, and other parts. Suitable for industries such as electromechanical, automotive, wind power, and construction machinery.
|
Item |
technical parameter |
|
|
Capacity
|
work table diameter mm |
1050 |
|
Max. rotation diameter mm |
Φ1250 |
|
|
Max. turning diameter mm |
Φ1100 |
|
|
Max. workpiece length mm |
900 |
|
|
Max. Workpiece Weight kg |
4000 |
|
|
work table
|
Work table speed r/min |
15~200 |
|
Max. torque of work table Nm |
1700 |
|
|
Power of main motor (cont./30min) kW |
22/30 |
|
|
feed
|
X-axis Travel distance mm |
650 |
|
Travel distance mm |
900 |
|
|
Rapid movement speed X/Z m/min |
10/10 |
|
|
Servo motor torque X/Z Nm |
23/23 |
|
|
Servo motor power X/Z kW |
4.0/4.0 |
|
|
Ball screw diameter X/Z mm |
Φ50 /Φ50 |
|
|
turret
|
Number of stations |
3 (Simultaneously 2) |
|
Tool size mm |
32X32 |
|
|
other
|
Power supply kVA |
25 |
|
Volume (length x width x height) mm |
2500X2300X4000 |
|
|
Total weight kg |
10000 |
|
