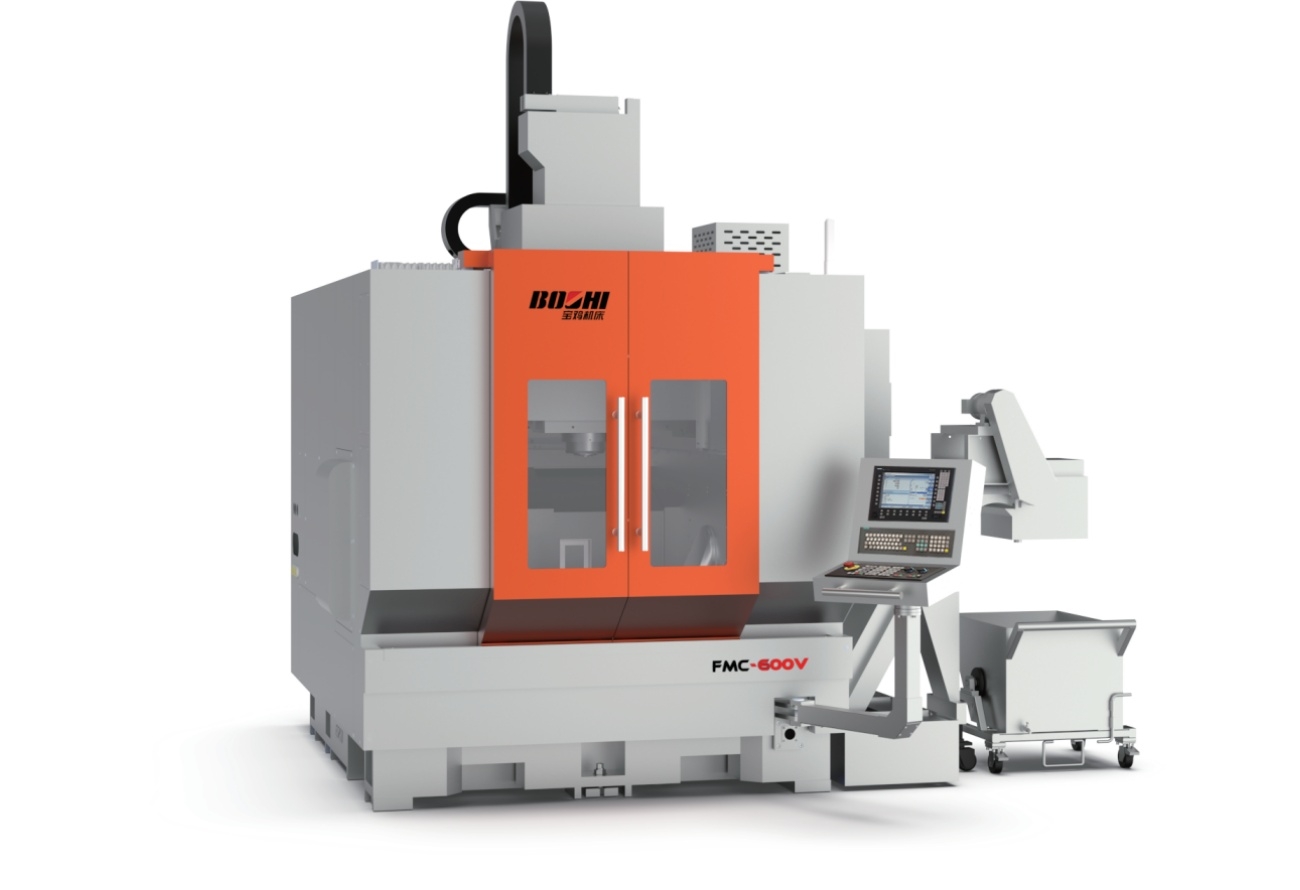

The FMC-600V is a high-end 5-axis vertical Machining Center. The machine tool adopts the double column elevated structure, vertical processing, equipped with the cradle style double swing rotary table; Thought the twice clamping operations can complete the complete processing of complex precision parts, greatly improving production efficiency, product quality, and reducing production costs, Mainly used for efficient five axis machining of complex shaped parts such as gas turbines, compressor impellers, and small molds, it is an essential equipment in industries such as auto industry, and molds. This machine is currently a typical model widely used in 5-axis simultaneous machining .
|
Items |
unit |
specifications |
|
|
X-axis travel |
mm |
700 |
|
|
Y-axis travel |
mm |
760 |
|
|
Z-axis travel |
mm |
500 |
|
|
A-axis inclination angle |
degree |
±120° |
|
|
C-axis indexing angle |
degree |
360° |
|
|
table size |
mm |
600X600 |
|
|
Allow max. weight of workpiece |
Kg |
600 |
|
|
Spindle speed |
r/min |
18000 |
|
|
Spindle taper hole |
|
HSK A63 |
|
|
Spindle power |
kW |
35 |
|
|
Distance from Spindle End Face to Work Table mode |
mm |
100-600 |
|
|
Fast forward system |
X. Y, Z rapid feed speed |
m/min |
48 |
|
|
A-axis Max speed |
m/min |
50 |
|
|
C-axis Max speed |
m/min |
100 |
|
X/Y/Z motor power |
kW |
4.9/2x3.1/4.9 |
|
|
Rated torque of X/Y/Z motor |
N.m |
27/2x20/27 |
|
|
Max. torque of A-axis motor |
N.m |
2x2130 |
|
|
Max. torque of C-axis motor |
N.m |
1430 |
|
|
Capacity of tools |
hold |
32 |
|
|
Max. Tools diameter |
mm |
75 (with knives on both sides) |
|
|
|
|
125 (no knives on both sides) |
|
|
Max. tools length |
mm |
300 |
|
|
Max. tools weight |
kg |
8 |
|
|
Supply |
kVA |
80 |
|
|
Machine tool weight |
kg |
13500 |
|
