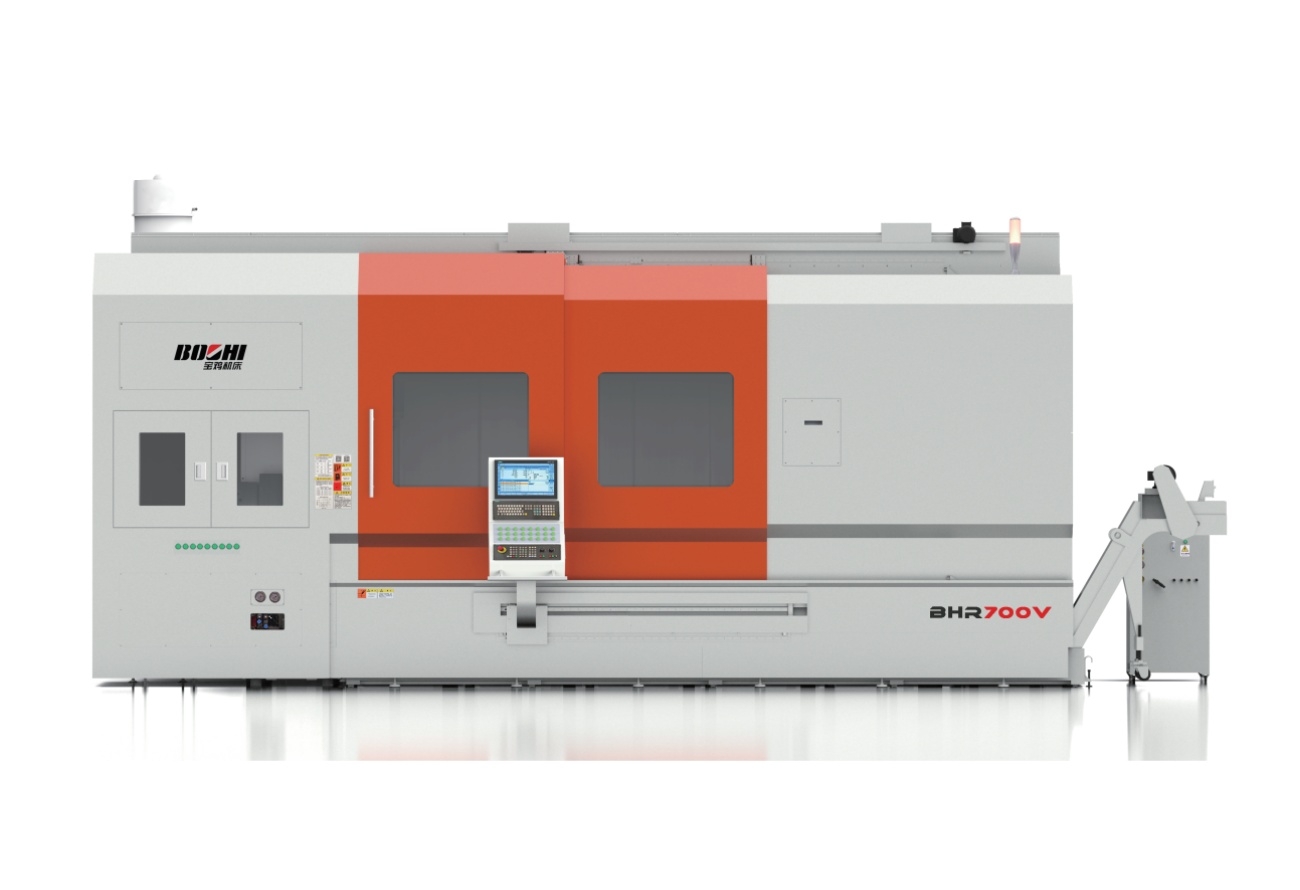

BHR700V horizontal turning and milling composite machining center is a new product using advanced research and development methods. The machine tool adopts a horizontal dual spindle layout, with the upper turret being a rotating B-axis and the lower turret being a horizontal power turret structure. It adopts high-speed turning and milling motor spindles, roller linear guideway, turning and milling shared chain type tool magazine. with features such as synchronized 5 axes, turning and milling composite , high speed and high processing precision.
|
Item |
Unit |
Standard （With tailstock and steady rest） |
Sub-spindle （With sub-spindle and lower turret） |
|
|
Capacity |
Max. swing over bed |
mm |
φ700 |
φ700 |
|
Max. Swing over slide |
mm |
φ500 |
φ500 |
|
|
Max. Processing diameter (upper turret/lower turret) |
mm |
φ700/- |
φ700/φ490 |
|
|
Max. Processing length |
mm |
2594/1594 |
2594/1594 |
|
|
Max. though-hole bar diameter |
mm |
φ67 |
φ67 |
|
|
Travel |
X1 axis |
mm |
845 |
845 |
|
X2 axis |
mm |
-- |
270 |
|
|
Z1 axis |
mm |
2680/1680 |
2680/1680 |
|
|
Z2 axis |
mm |
-- |
2600/1600 |
|
|
W axis(Sub-spindle) |
mm |
-- |
2400/1570 |
|
|
Y axis( Upper turret) |
mm |
430(±215) |
430(±215) |
|
|
B axis |
deg |
±120 |
±120 |
|
|
C axis |
deg |
Rotary axis |
Rotary axis |
|
|
Feed |
Rapid feed speed X1/X2 axis |
m/min |
36/- |
36/36 |
|
Rapid feed speed Z1/Z2 axis |
m/min |
36/- |
36/36 |
|
|
Rapid feed speed Y axis （upper turret） |
m/min |
36 |
36 |
|
|
Rapid feed speed W axis |
m/min |
8 |
30 |
|
|
Rapid feed speed B axis |
r/min |
40 |
40 |
|
|
Rapid feed speed C axis |
r/min |
200 |
200 |
|
|
X/Y/Z/W axis Guide type |
|
Roller type linear guide |
Roller type linear guide |
|
|
Spindle |
Chuck size |
inch |
10" |
10" |
|
Speed |
r/min |
max 4000 |
max 4000 |
|
|
Motor power (S6-40%/S1-100%) |
kw |
26.8/20.9 |
26.8/20.9 |
|
|
Rated/Max torque |
Nm |
200/330 |
200/330 |
|
|
Indexing degree (C axis) |
deg |
0.0001 |
0.0001 |
|
|
Spindle nose |
- |
A2-8 |
A2-8 |
|
|
Spindle bore |
mm |
Φ82 |
Φ82 |
|
|
Spindle bearing inner diameter |
mm |
φ130 |
φ130 |
|
|
Sub-spindle (Optional) |
Chuck |
inch |
- |
10" |
|
Speed |
r/min |
- |
max 4000 |
|
|
Motor power (S6-40% /S1-100%) |
kw |
- |
26.8/20.9 |
|
|
Indexing degree (C axis) |
deg |
- |
0.0001 |
|
|
Spindle nose |
- |
- |
A2-8 |
|
|
Spindle bore |
mm |
- |
Φ82 |
|
|
Spindle bearing inner diameter |
mm |
- |
φ130 |
|
|
ATC |
Tool shank type |
|
HSK-A63 |
|
|
Tool number |
pcs |
40/80/120 |
||
|
Max tool diameter |
mm |
φ90/φ125 |
||
|
Max tool length |
mm |
500 |
||
|
Max. Tool weight |
kg |
12 |
||
|
CNC |
|
|
SIEMENS Sinumerik ONE |
|
|
Upper turret(Milling spindle) |
Tool type |
|
HSK-A63 |
|
|
B axis locking degree |
deg |
5 |
||
|
B axis indexing type |
|
Servo motor + gear box reducer |
||
|
B axis B axis indexing time |
s |
1/90° |
||
|
Tool number |
pcs |
1 |
||
|
Turning/ boring tool section |
mm |
□25/φ40 |
||
|
Milling spindle speed |
r/min |
max 12000 |
||
|
Milling spindle power (S1-100%/S6-40%) |
kw |
26 |
||
|
Milling spindle torque |
Nm |
75 |
||
|
Coolant though spindle pressure |
MPa |
Max 7 |
||
|
Lower turret (Optional) |
Turret type |
|
- |
Turret(BMT-65) |
|
Tool number |
pcs |
- |
12 |
|
|
Tool section |
mm |
- |
□25/40 |
|
|
Living tool speed |
r/min |
- |
max 5000 |
|
|
Living tool power |
kw |
- |
3.7 |
|
|
Tailstock |
Taper |
|
MT-5 |
- |
|
Tailstock travel |
mm |
1600/2400 |
- |
|
|
Steady rest (Optional） |
Holding size |
mm |
Φ30-245 |
- |
|
Power |
Power supply |
V/kVA |
AC3~380V±10%/120 |
|
|
Frequency |
Hz |
50±1 |
||
|
Air pressure |
MPa |
≥0.6 |
||
|
Air flow (ANR:normal) |
L |
550 |
||
|
Volume |
Coolant tank |
L |
750 Include coolant though spindle |
|
|
Hydraulic station |
L |
30 |
||
|
Water chiller |
L |
70 |
||
|
Dimensions |
L*W*H |
mm |
8315×4436×3835 |
|
|
Net/Gross weight |
|
kg |
26000/28000 |
|
